Ortofon - 2M Mono Replacement Stylus Vinyl Record Hub

Ortofon - 2M Mono Replacement Stylus Vinyl Record Hub

£322.95 GBP
£322.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

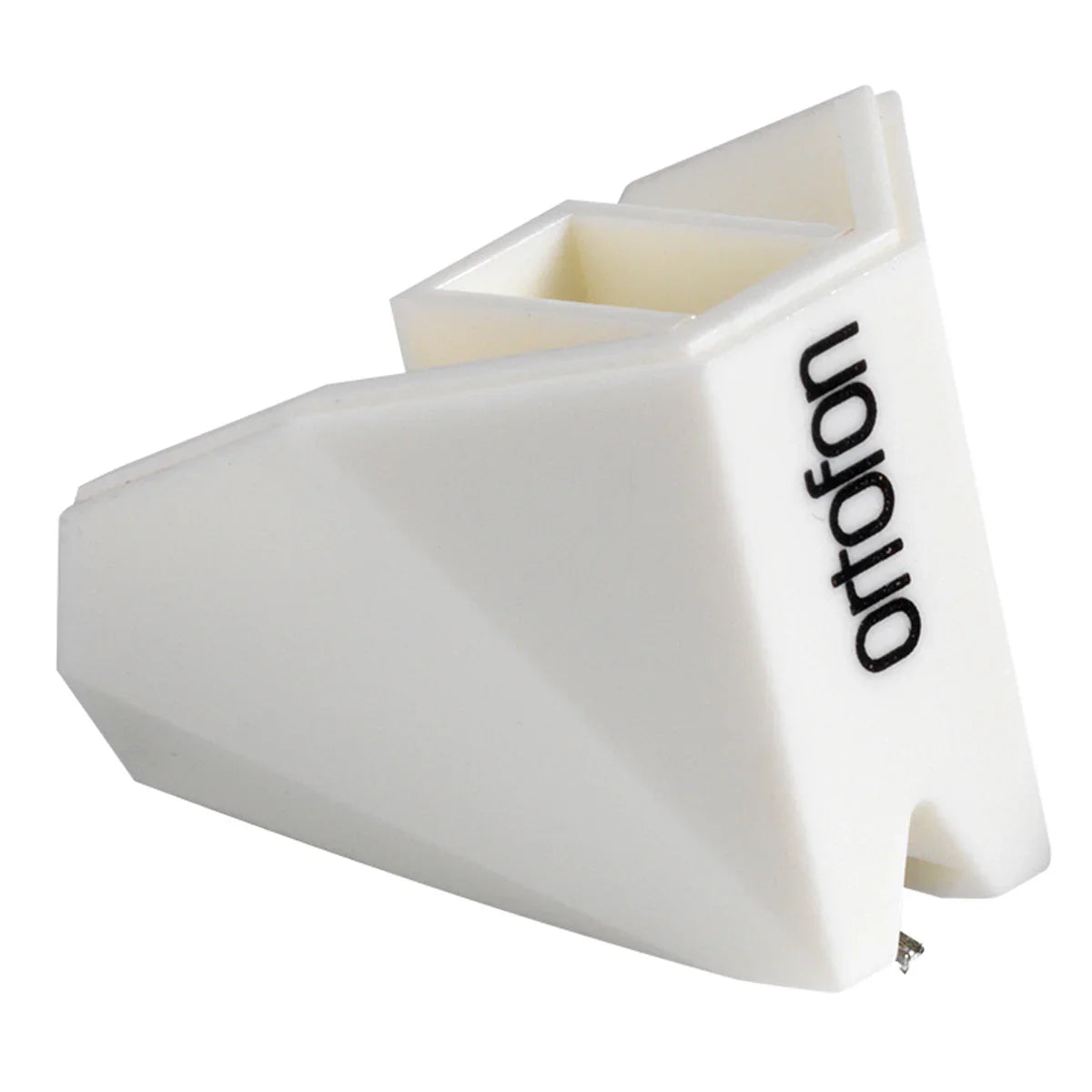

Stylus 2M Mono

2M series styli are interchangeable within the following combinations:
2M Red, 2M Blue, and 2M Silver;
2M Bronze, 2M Black, and 2M Black LVB 250;
2M Mono and 2M 78

2M styli interchangeability

The 2M series styli are interchangeable within the following combinations:
1) 2M Red, 2M Blue, and 2M Silver,
2) 2M Bronze, 2M Black, and 2M Black LVB 250,
3) 2M Mono and 2M 78.

Special for 2M Red, 2M Blue, and 2M Silver phono cartridges: 2M Silver will be an upgrade compared to 2M Red due to a special suspension and silver-plated copper wire material. The 2M Blue is an upgrade compared to both 2M Red and 2M Silver thanks to the Nude Elliptical diamond which retrieves information from the groove with a higher accuracy.

Specifications

  • Frequency response 20 Hz - 20 kHz
    3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force
    70 µm
  • Compliance, dynamic, lateral
    18 µm/mN
  • Stylus type
    Nude Spherical
  • Stylus tip radius
    R 18 µm
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Stylus colour
    White
